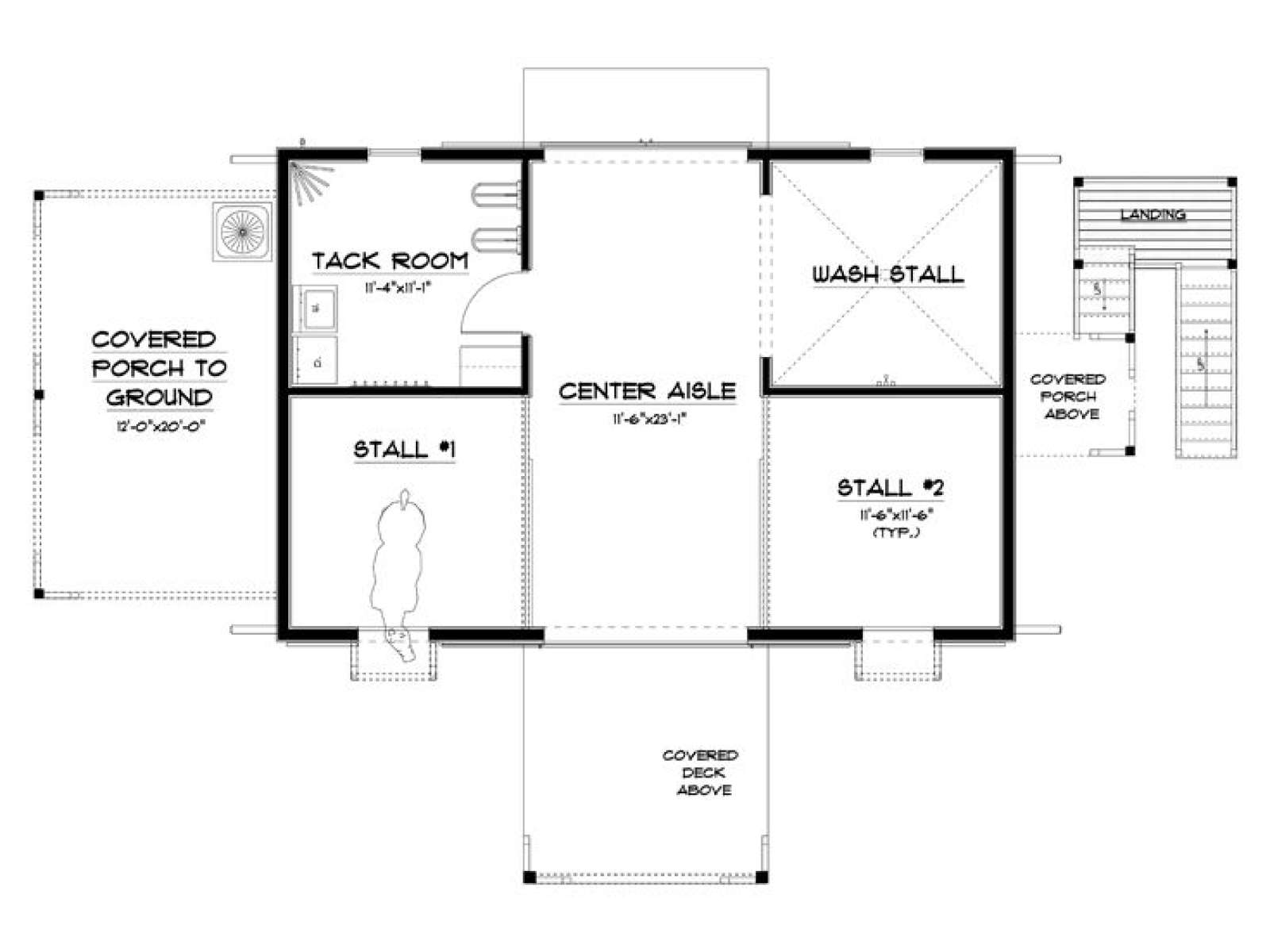

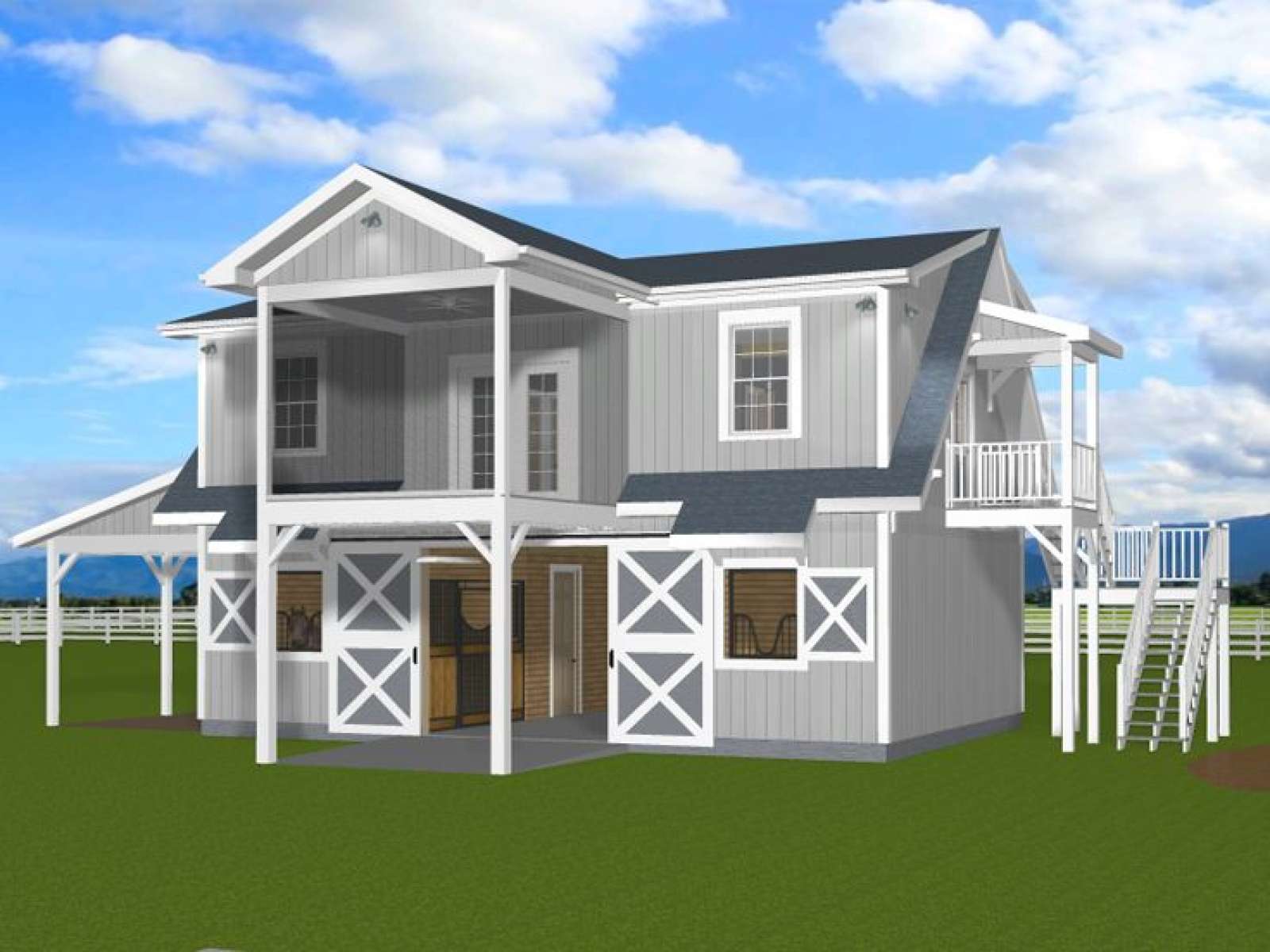

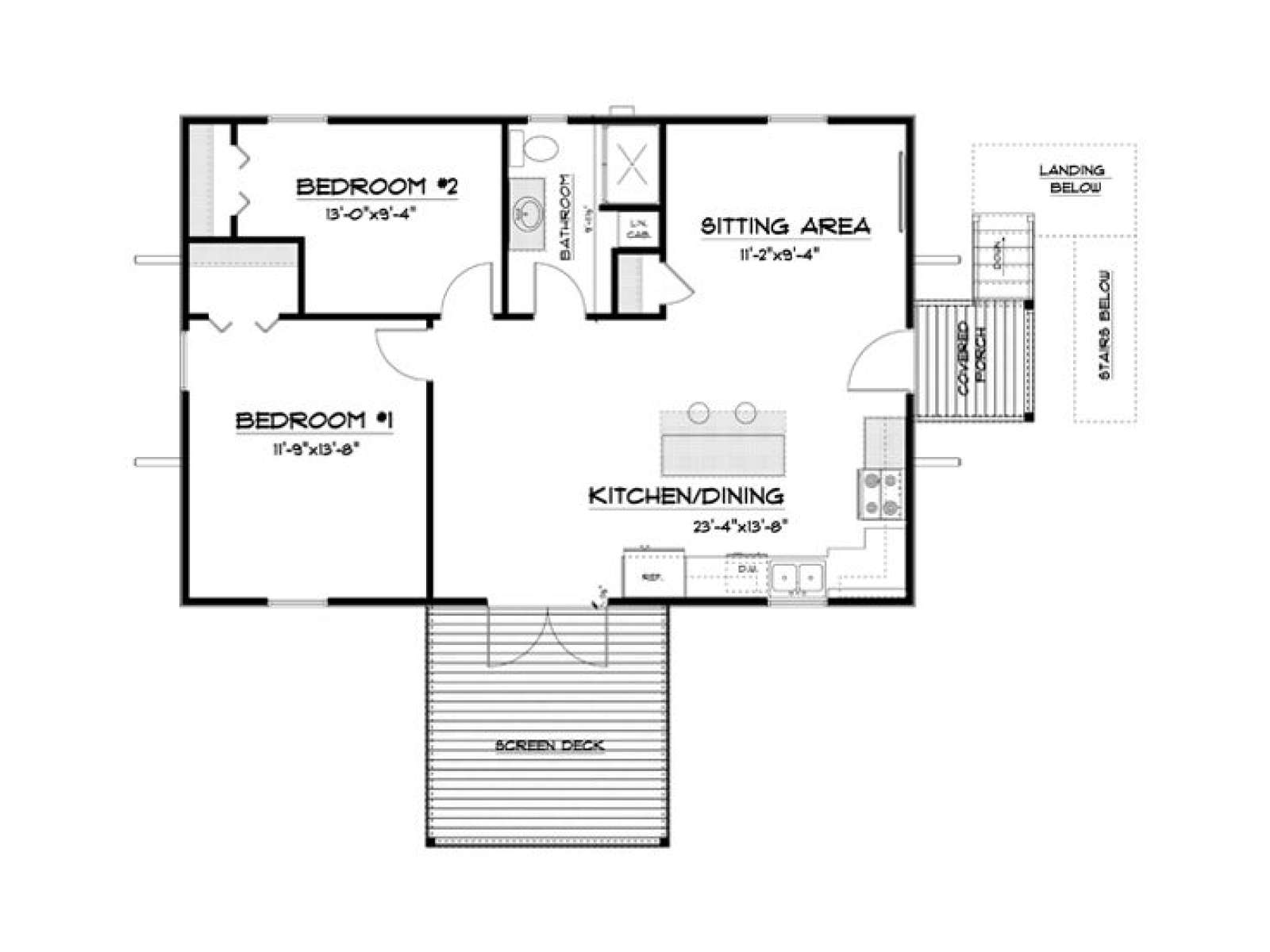

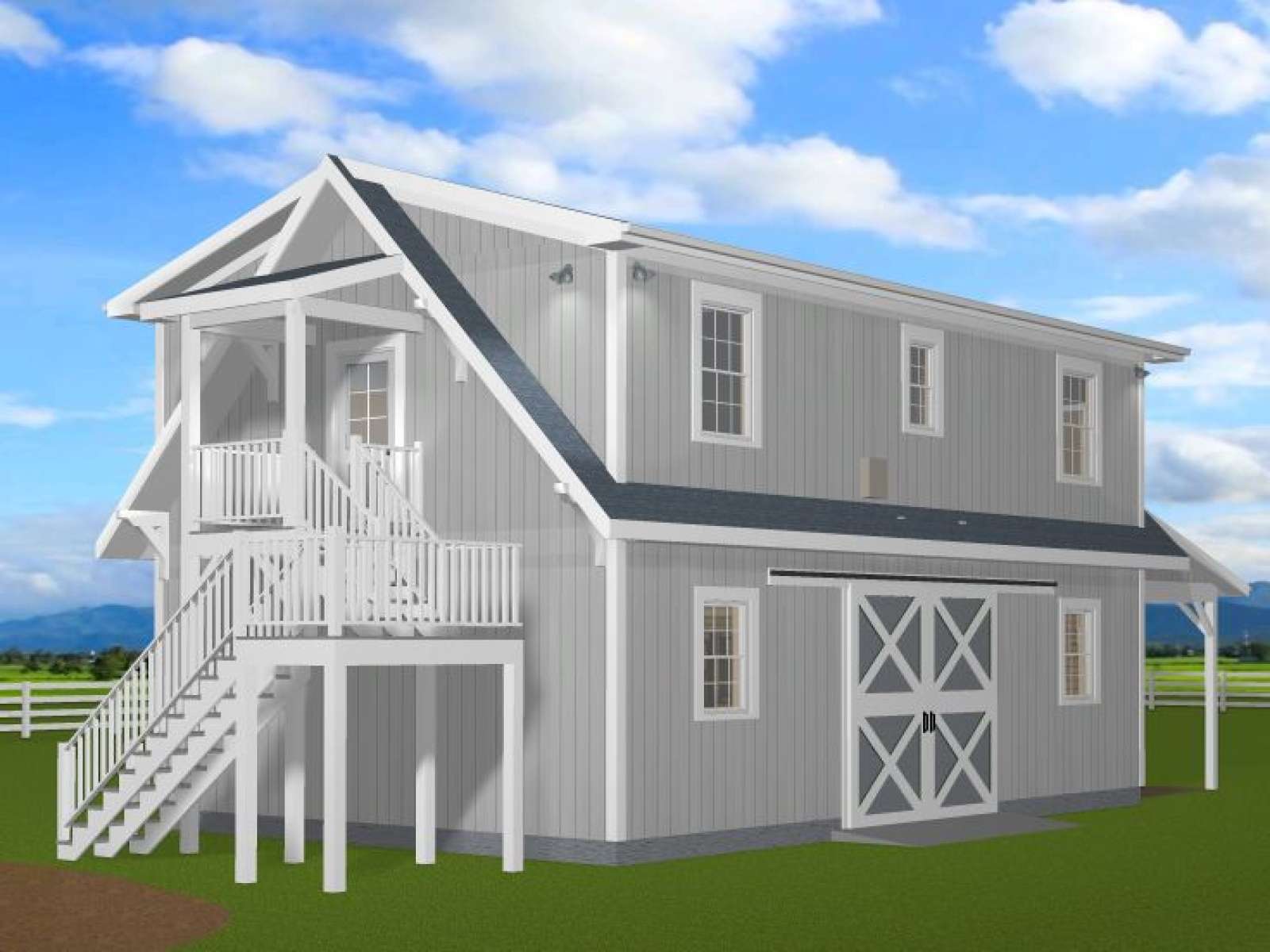

Horse Barn Plan, 087B-0006
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
First floor wall framing is 2x6 @ 16" OC, second floor wall framing is 2x4 @ 16" OC
Listed overall dimensions do not include covered porch, deck, stairs or screened porch
Foundation is slab except in stall areas
| Heated Square Feet | |
| First Floor | 147 |
| Second Floor | 864 |
| Total | 1011 |
| Unheated Square Feet | |
| Outbuilding/Barn | 717 |
| Bedrooms | 2 |
| Full Bathrooms | 1 |
| Width | 36 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 36 ft. 7 in. |
| Ceiling Height | |
| First Floor | 9 ft. 11 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 3.5/12 Main |
| Roof Pitch | 6.25/12 Gable |
| Roof Pitch | 3.5/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Exterior Features |
|
| Garage Features |
|
First floor wall framing is 2x6 @ 16" OC, second floor wall framing is 2x4 @ 16" OC
Listed overall dimensions do not include covered porch, deck, stairs or screened porch
Foundation is slab except in stall areas
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $55 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
