Storage Shed Design, 057S-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Barn-style shed plan will look good in any backyard

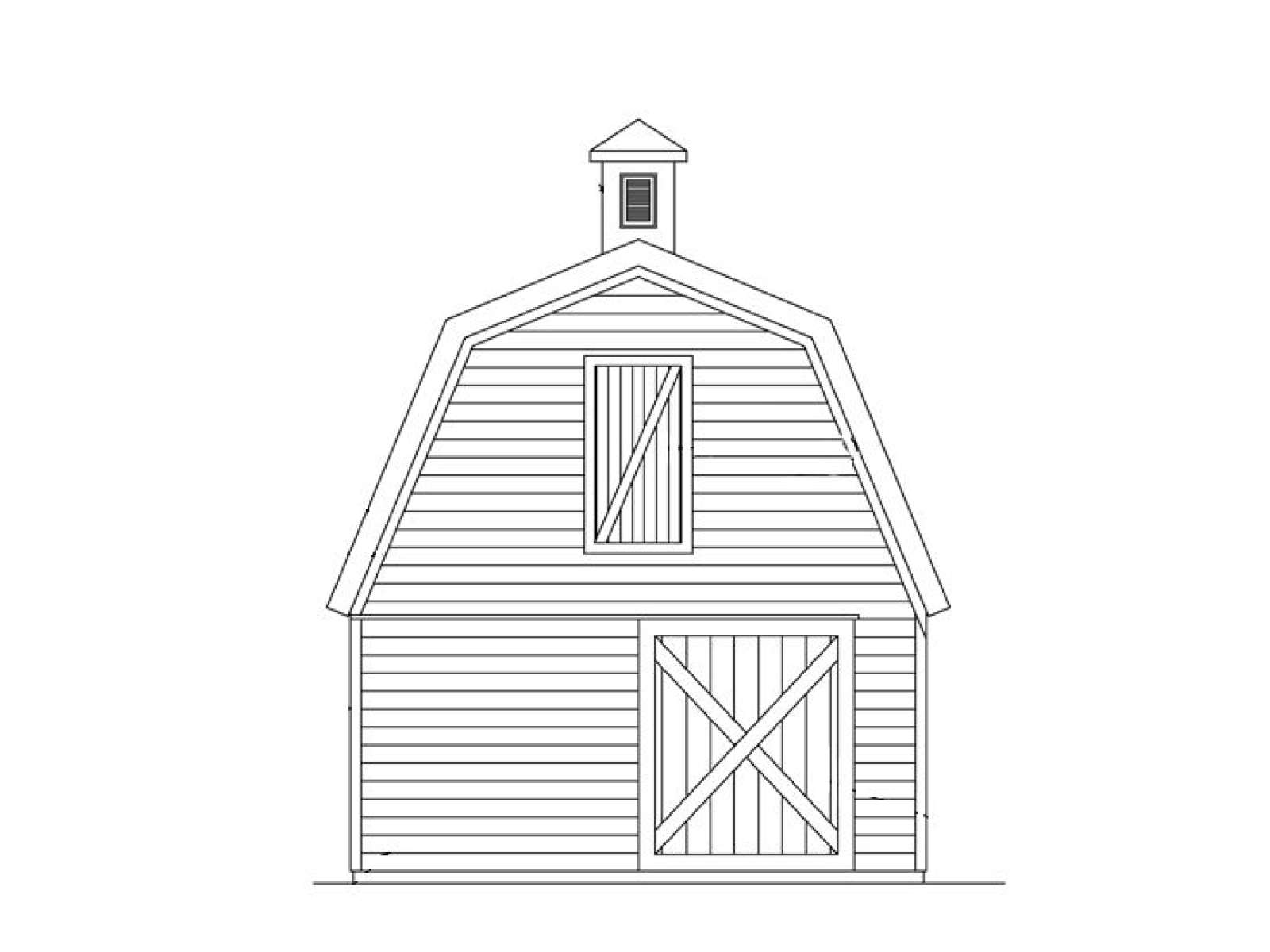

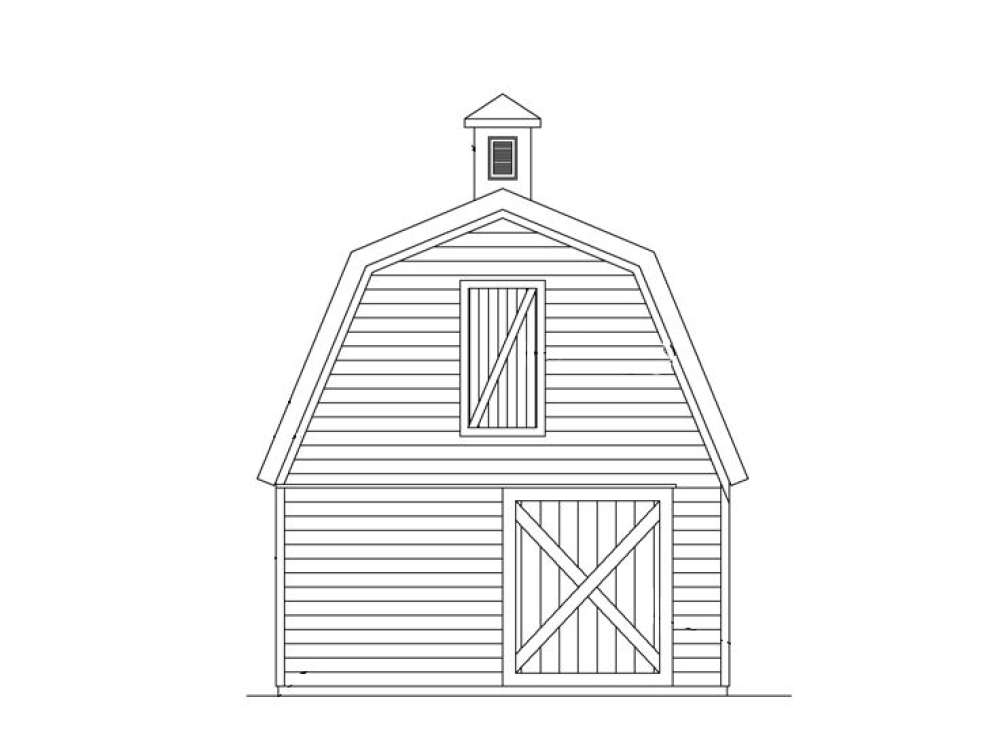

Sliding barn door and gambrel roof contribute to its good looks

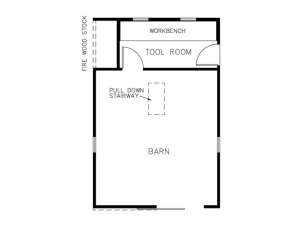

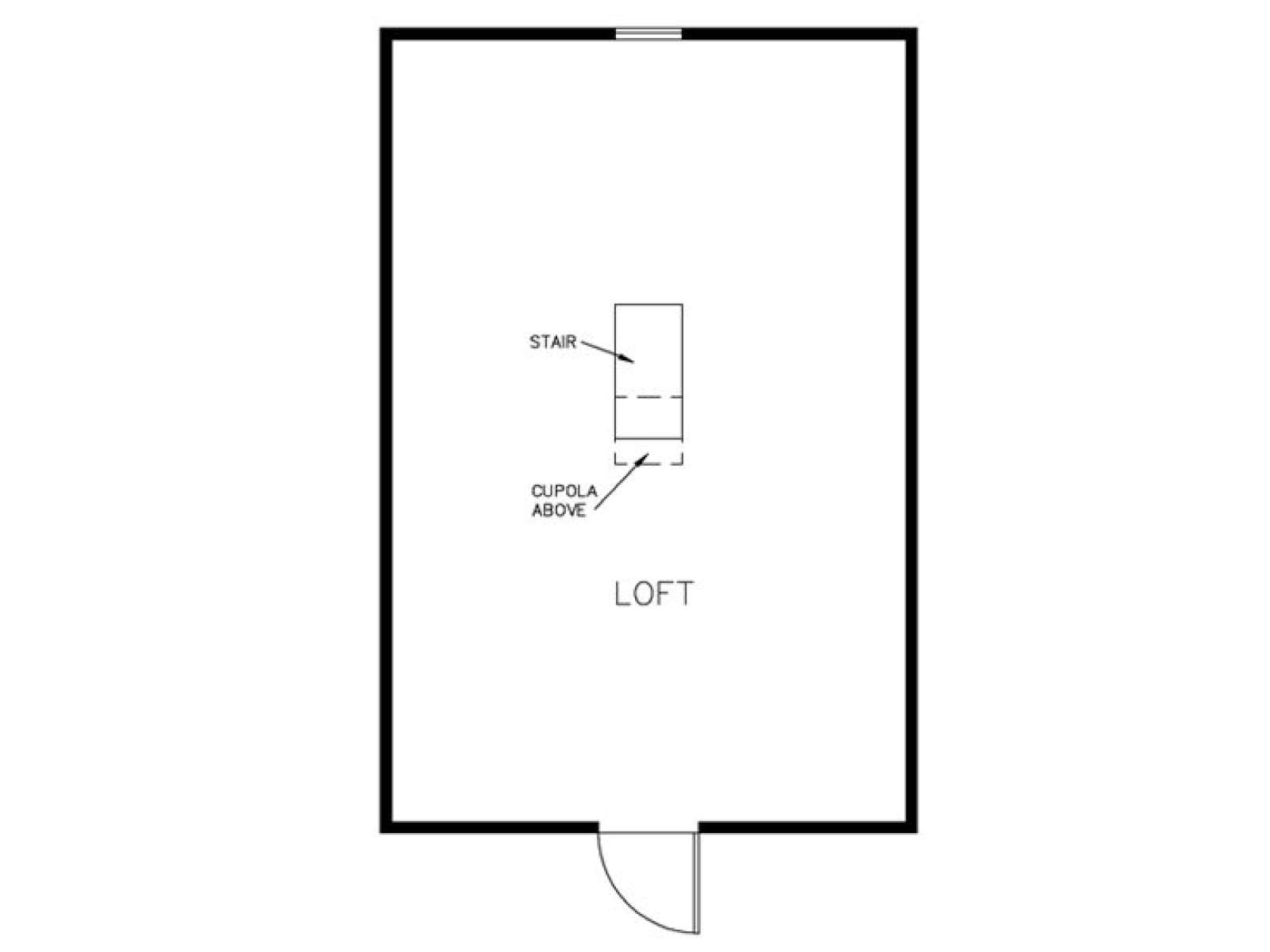

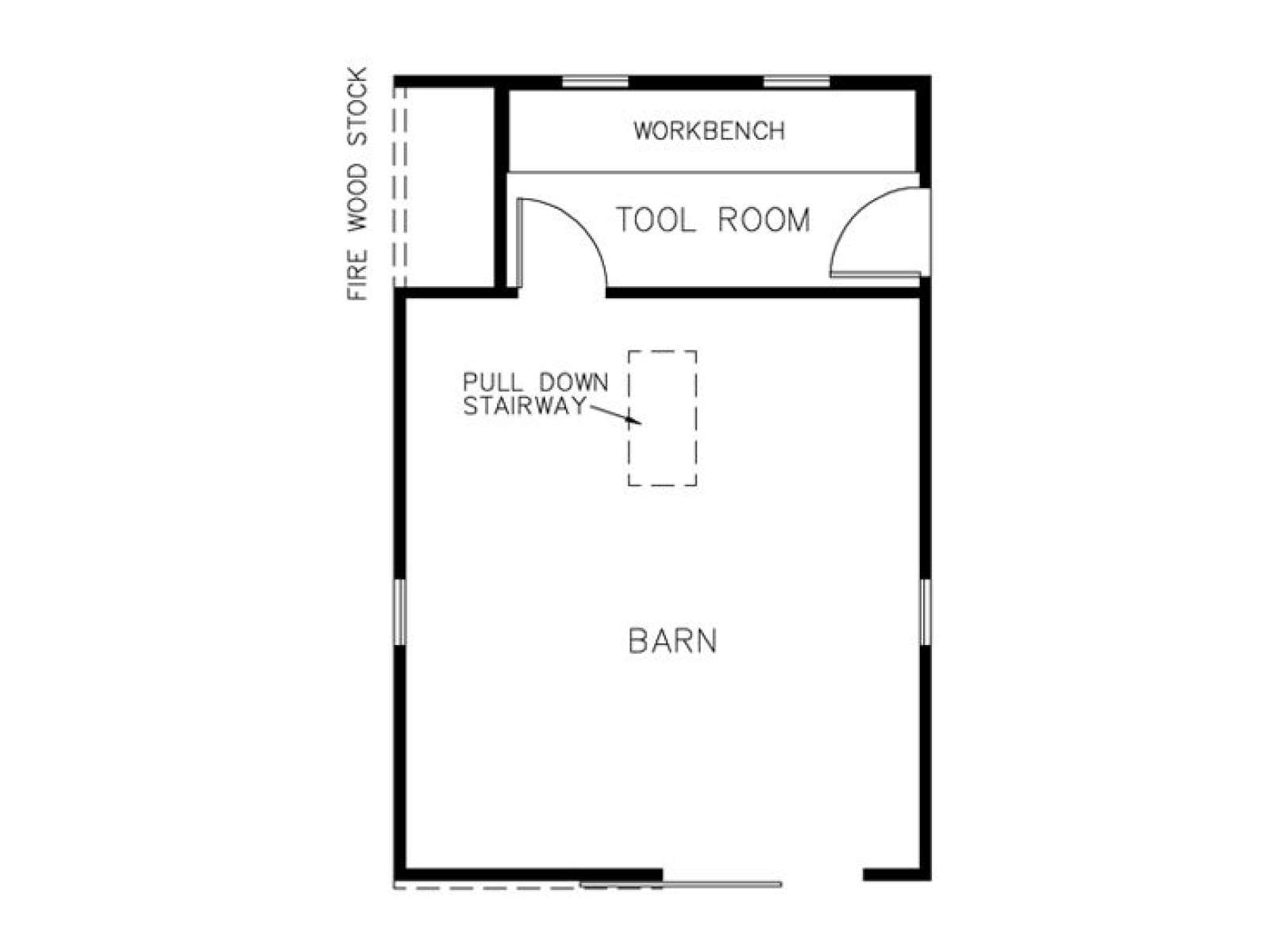

Features barn/storage area, a tool room with workbench, firewood storage and an unfinished loft accessed by a pull-down stair
Material list included with the construction drawings
| Width | 16 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 6 ft. 8 in. |
| Roof Pitch | 29/12 Main |
| Roof Pitch | 5/12 Secondary |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Garage Features |
|
Barn-style shed plan will look good in any backyard
Sliding barn door and gambrel roof contribute to its good looks
Features barn/storage area, a tool room with workbench, firewood storage and an unfinished loft accessed by a pull-down stair
Material list included with the construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
