Lighthouse Tower Plan, 052X-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

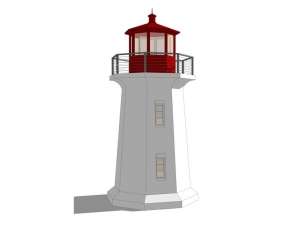

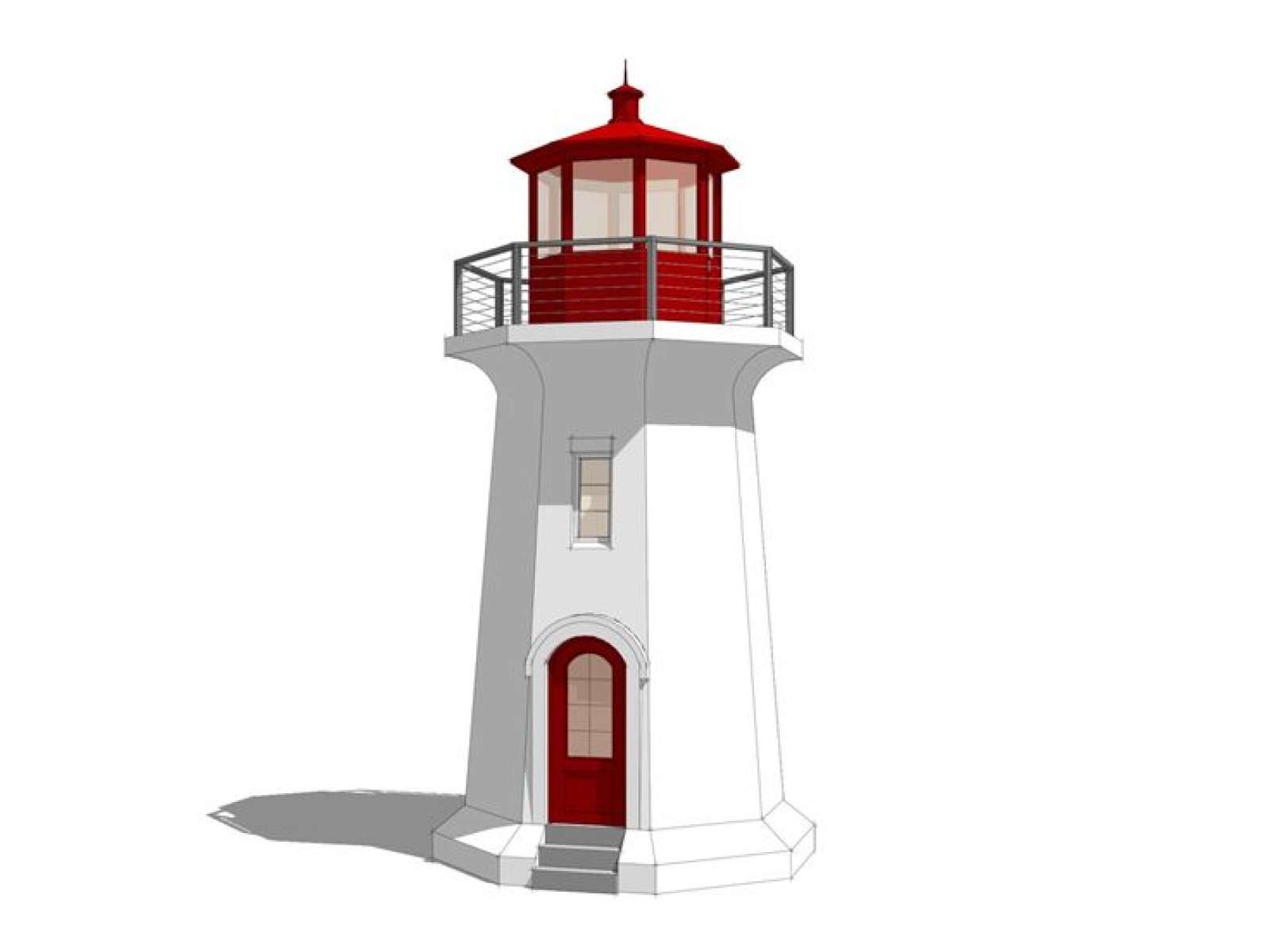

Lighthouse modeled after a famous active light house on the Canadian coastline
Wood framing and slab foundation
Cap to the tower would be fabricated by a local metal shop based on dimensions provided in construction drawings
| Heated Square Feet | |

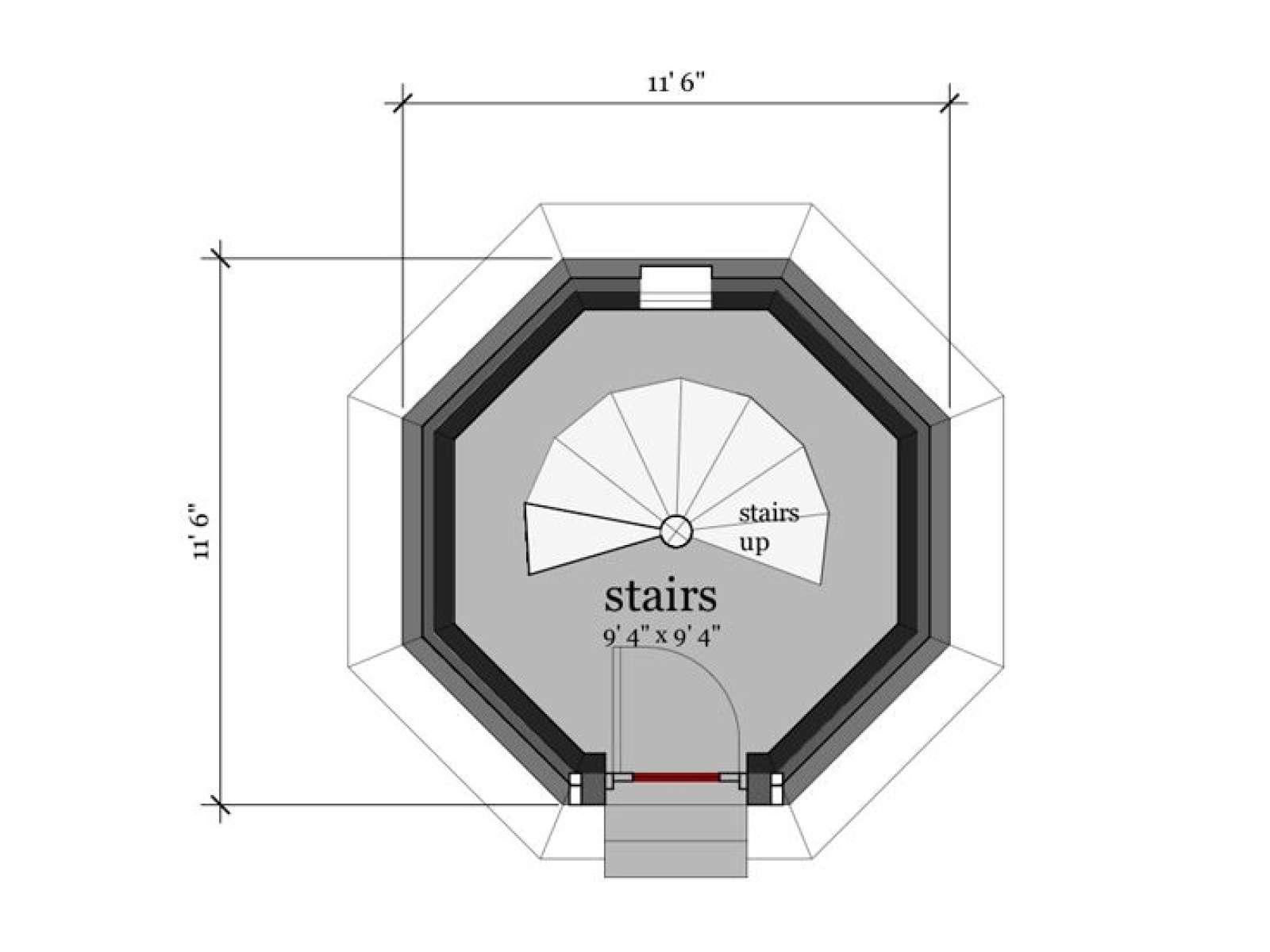

| First Floor | 80 |
| Total | 80 |
| Width | 12 ft. 0 in. |
| Depth | 12 ft. 0 in. |
| Approximate Height | 30 ft. 0 in. |
| Ceiling Height | |
| First Floor | 15 ft. 10 in. |

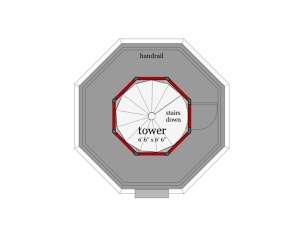

| Second Floor | 6 ft. 10 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Lighthouse modeled after a famous active light house on the Canadian coastline
Wood framing and slab foundation
Cap to the tower would be fabricated by a local metal shop based on dimensions provided in construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
