Outbuilding Plan, 051B-0001

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

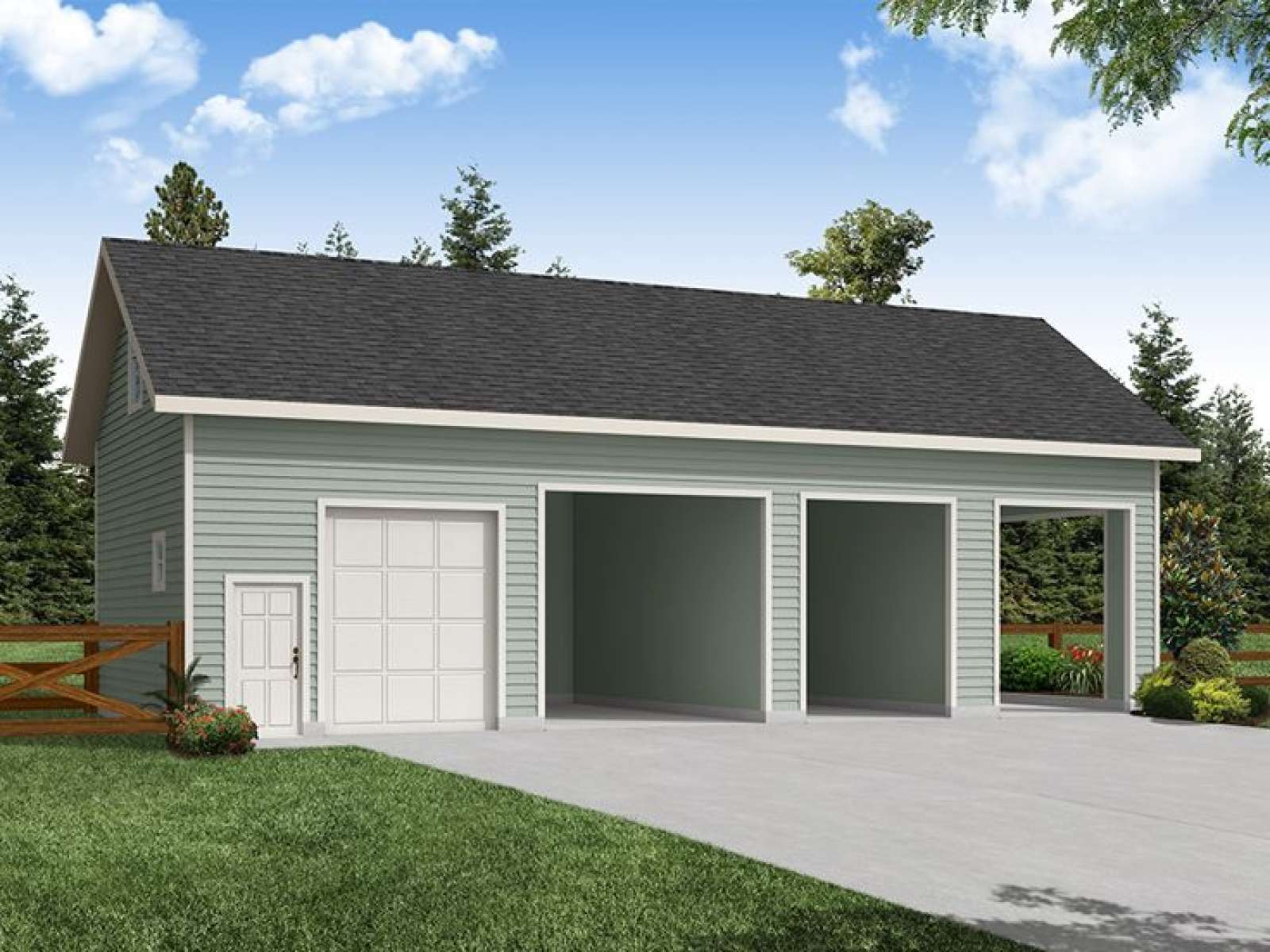

Versatile outbuilding plan well suited for farms, ranches and other large pieces of property

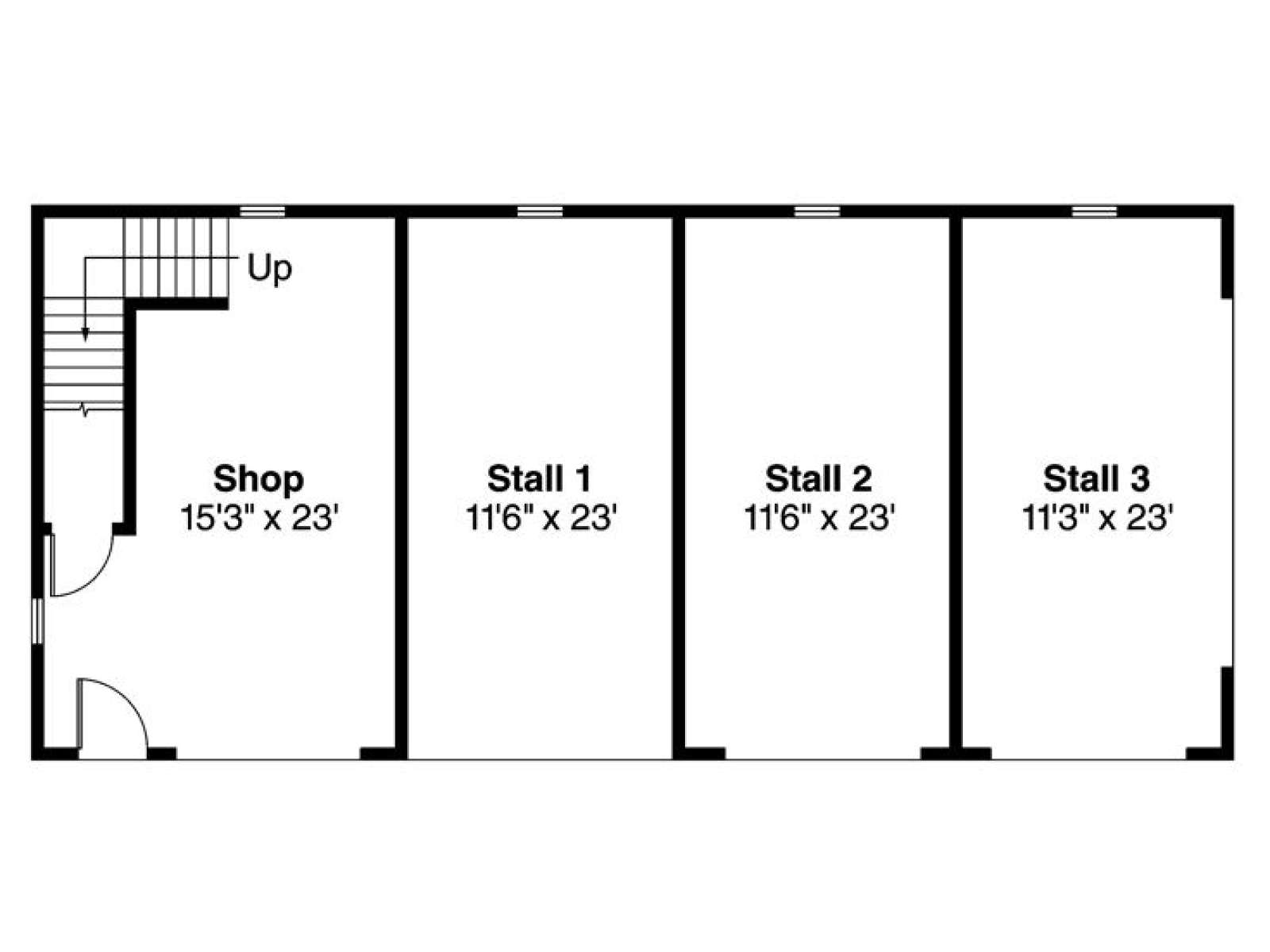

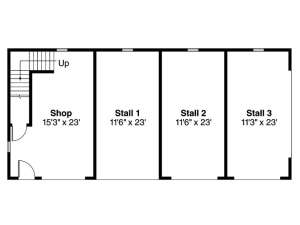

Features three stalls for storing equipment, machinery or tractors
Stall 3 is open in front and on the side for easy access
Workshop provides room for DIY projects and tool storage

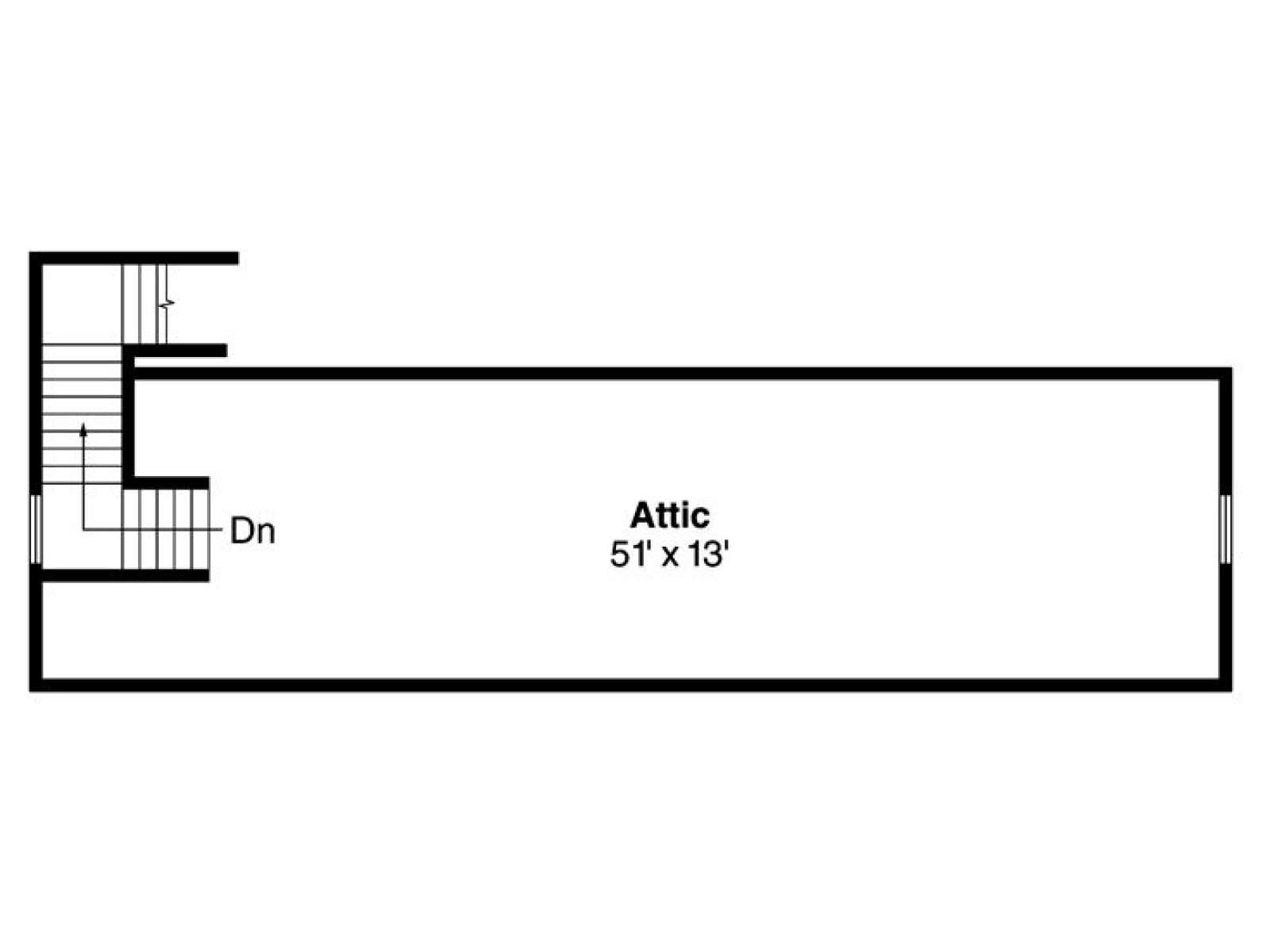

Interior stairs lead to a handy storage attic

Unheated Square Feet
Loft	680
Outbuilding/Barn	858
Workshop	390
Width	52 ft. 0 in.
Depth	24 ft. 0 in.
Approximate Height	23 ft. 3 in.
Ceiling Height
First Floor	12 ft. 0 in.
Roof Pitch	8/12 Main
Roof Framing	Truss
Garage Door Size(s)	8x10
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	$70	n/a	n/a	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Outbuilding with Shop

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 051B-0001: $25.00 ea.

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] …[more]

Right Reading Reverse for Plan 051B-0001: $80.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
