Drive-Thru Garage Plan, 050G-0021

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

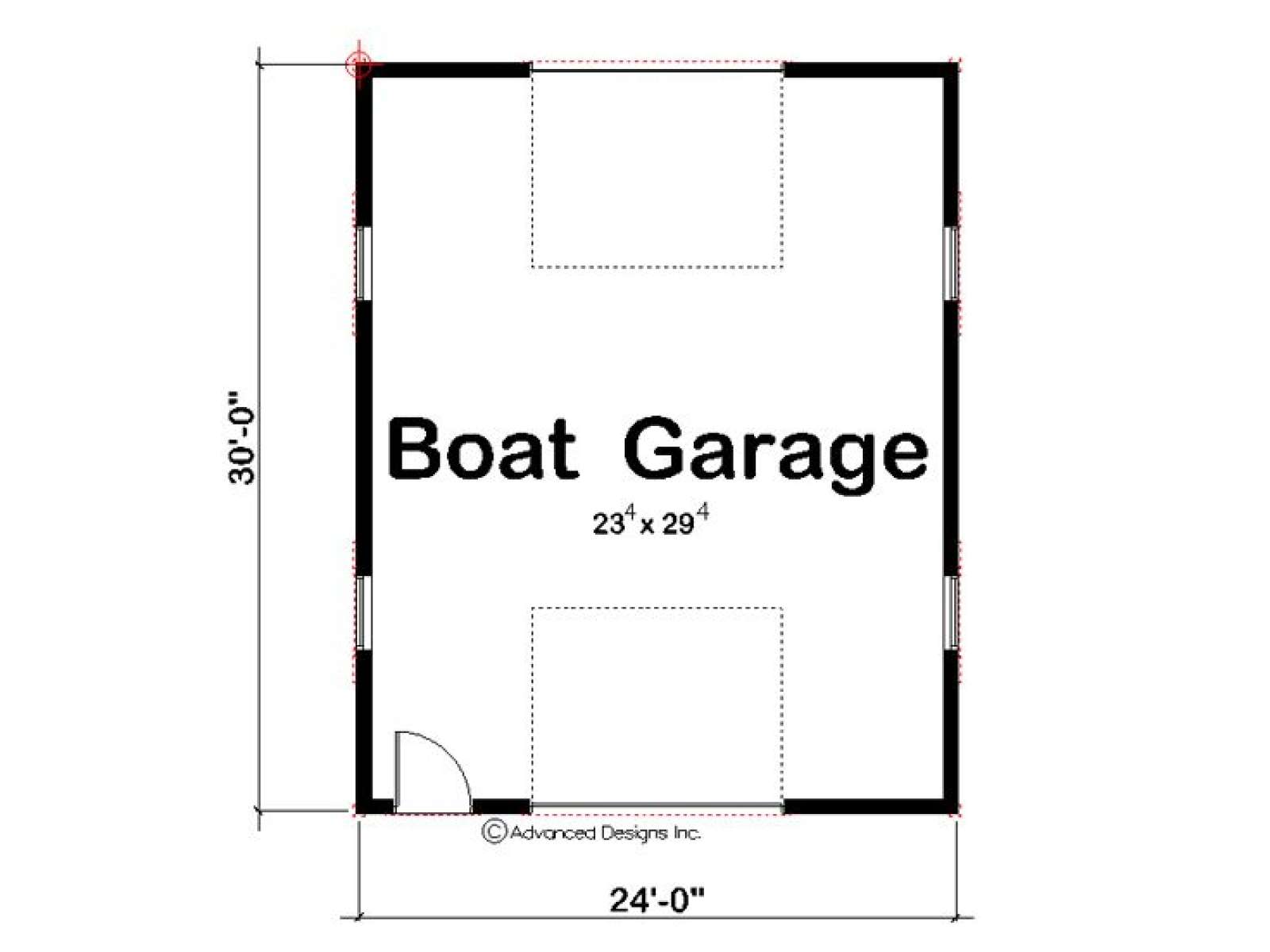

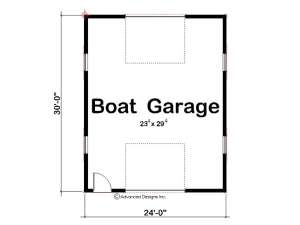

Drive-thru garage plan eliminates the hassled of backing the boat in or out of the garage
Front and rear garage doors are the ultimate convenience
There is plenty of room for storage along the sides, ideal for fishing poles, life jackets, and more

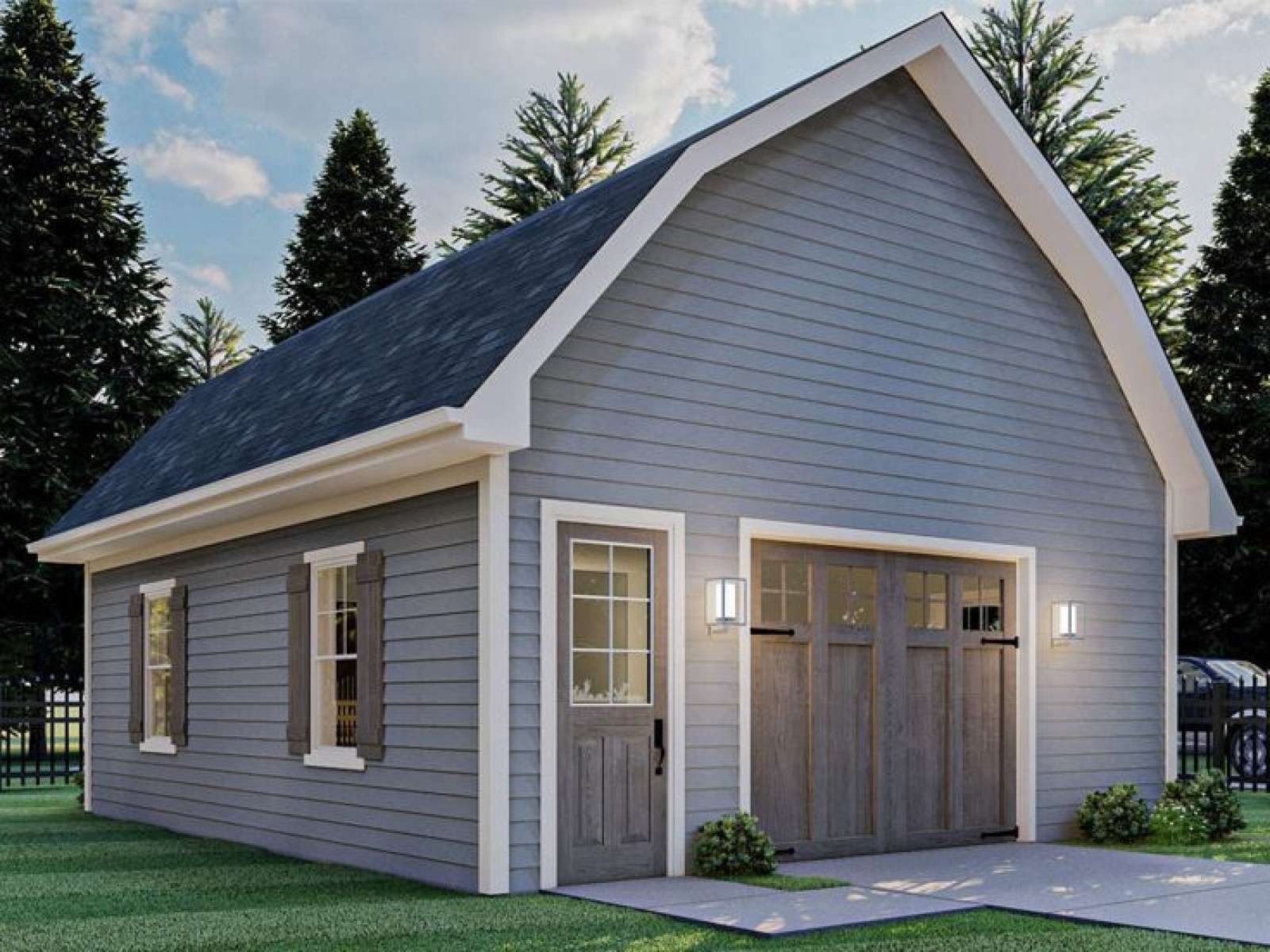

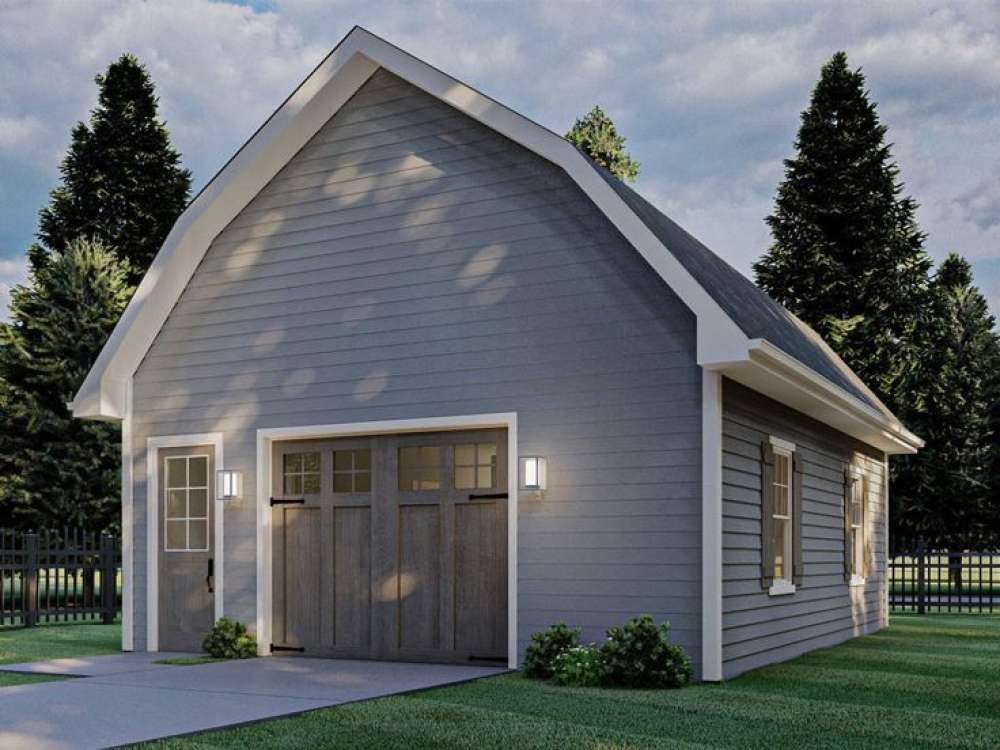

Gambrel roof adds a touch of country charm
Handy front-entry service door

Unheated Square Feet
Garage	669
Width	24 ft. 0 in.
Depth	30 ft. 0 in.
Approximate Height	22 ft. 1 in.
Ceiling Height
First Floor	9 ft. 0 in.
Roof Pitch	8/12 Main
Roof Pitch	14/12 Other
Roof Framing	Stick
Garage Door Size(s)	10x8 (2)
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	$70	n/a	$90	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Garage with Gambrel Roof

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Material List for Plan 050G-0021: $300.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for Plan 050G-0021: $300.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
