Bay Window Addition, 047X-0022
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

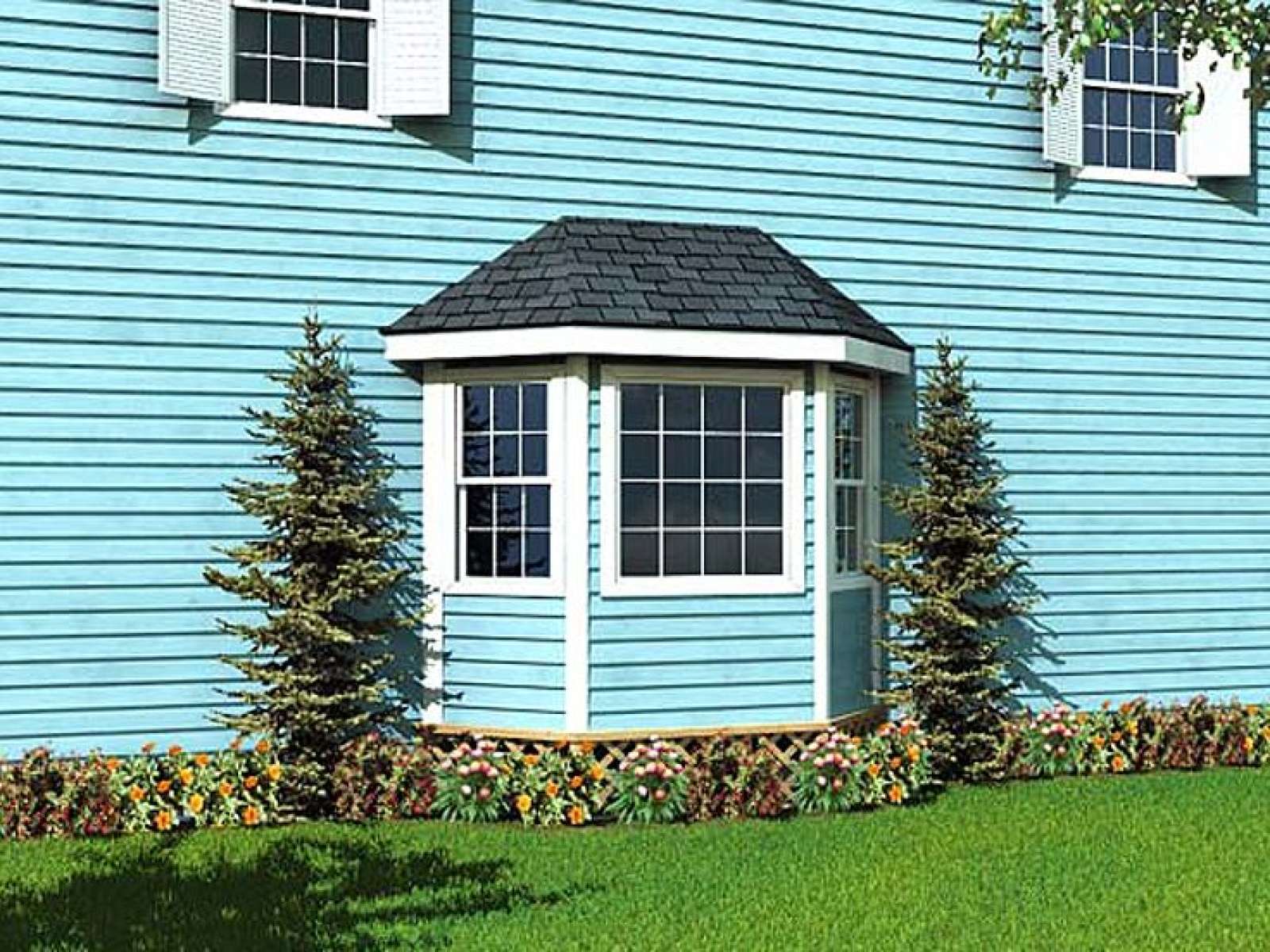

Bay window addition provides a little extra space for smaller rooms
Fills the room with natural light
Hip roof with 8/12 or 12/12 pitch options
Designed for two-story homes

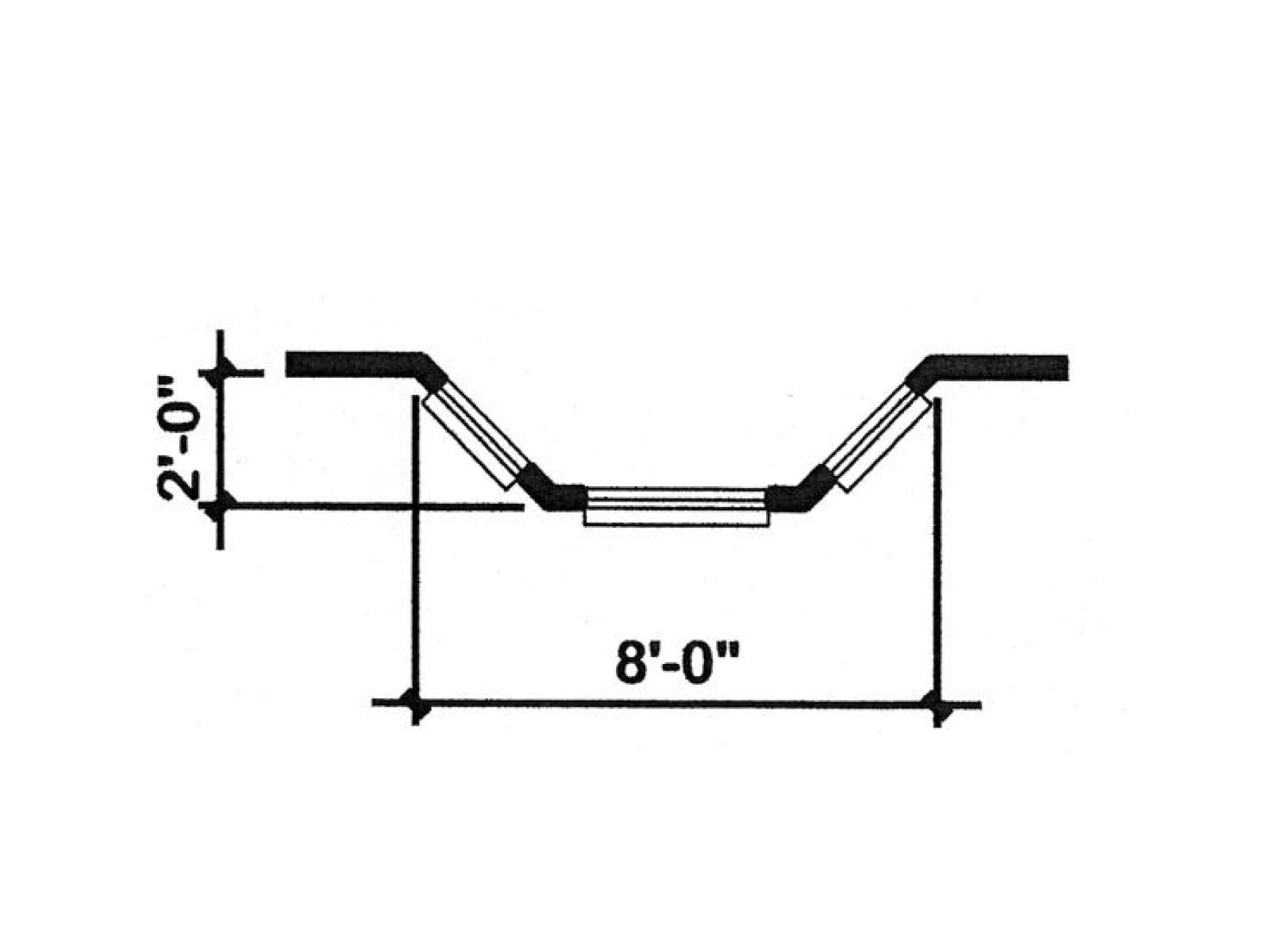

Available in 4 sizes: 2’x8’, 2’x10’, 2’-6”x9’, 2’-6”x11’
| Roof Framing |
|
Bay window addition provides a little extra space for smaller rooms
Fills the room with natural light
Hip roof with 8/12 or 12/12 pitch options
Designed for two-story homes
Available in 4 sizes: 2’x8’, 2’x10’, 2’-6”x9’, 2’-6”x11’
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
