Gazebo Plan, 006X-0022

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

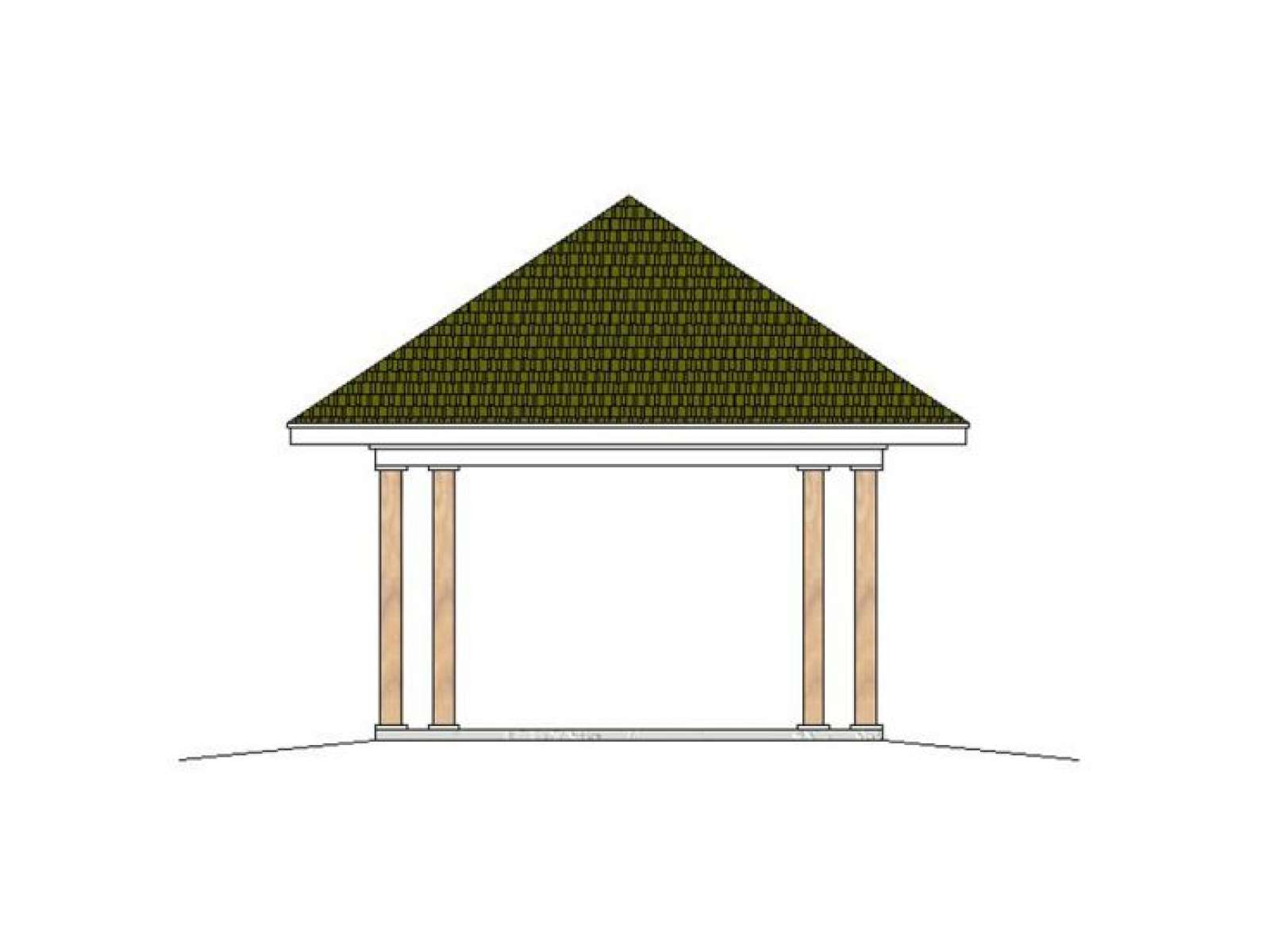

Entertain guests with this summer with this vaulted gazebo plan
Supported by 8” columns
Total square footage – 365 sf
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.

Unheated Square Feet
Other	365

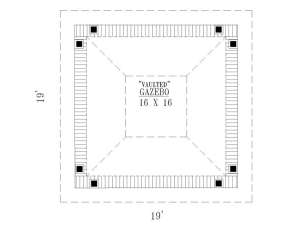

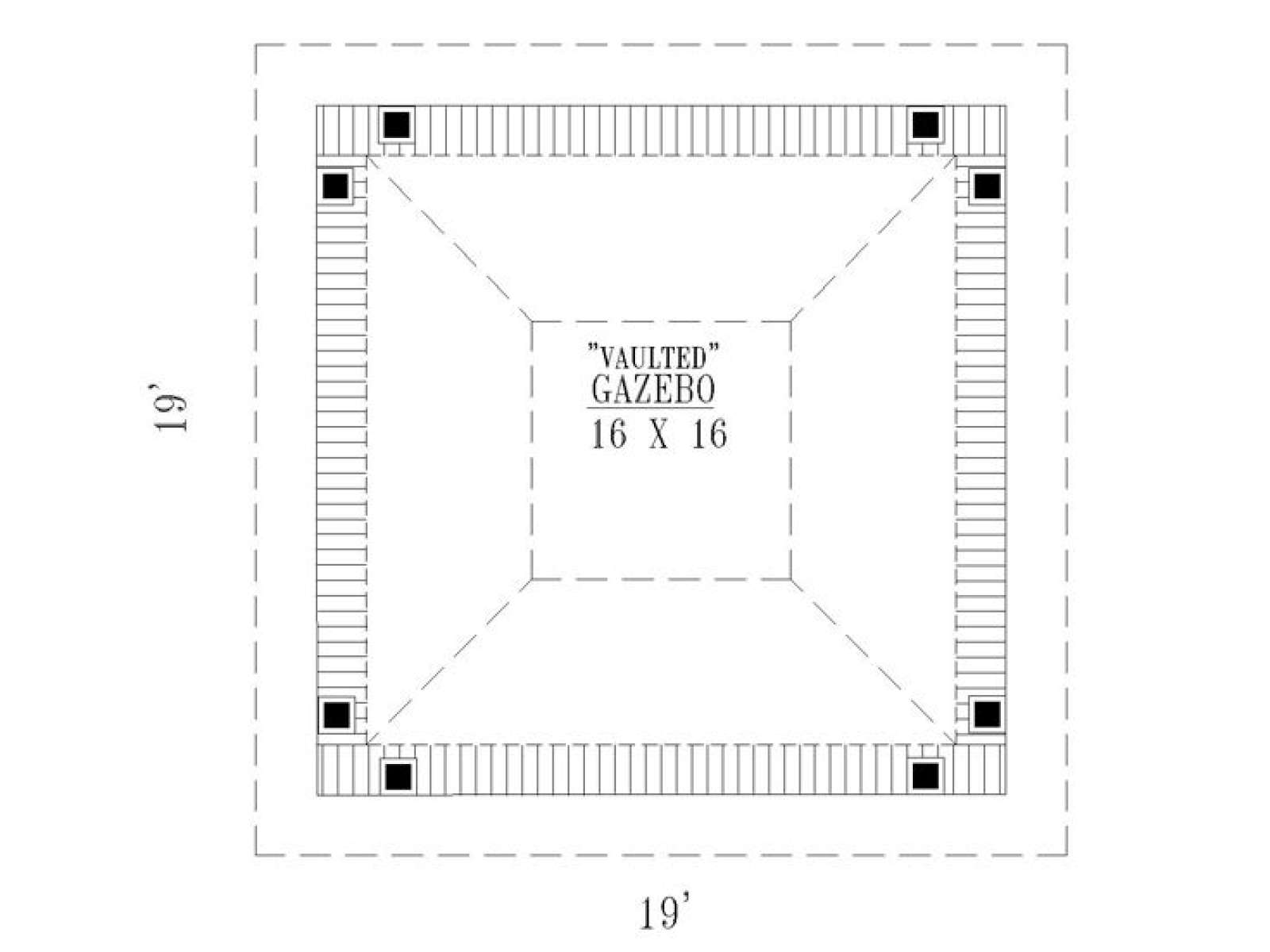

Width	19 ft. 0 in.
Depth	19 ft. 0 in.
Ceiling Height
First Floor	12 ft. 0 in.
Roof Framing	N/A
Foundation Options	Monolithic Slab
Exterior Wall Options	Posts

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$35	n/a	n/a	n/a
Priority 3 - 4 business days	$40	n/a	$55	n/a
Express 1 - 2 business days	$55	n/a	n/a	n/a

There are no reviews

Add your review

Vaulted Gazebo

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 006X-0022: $35.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 006X-0022: $90.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
