Barn Plan with Apartment, 001B-0001

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

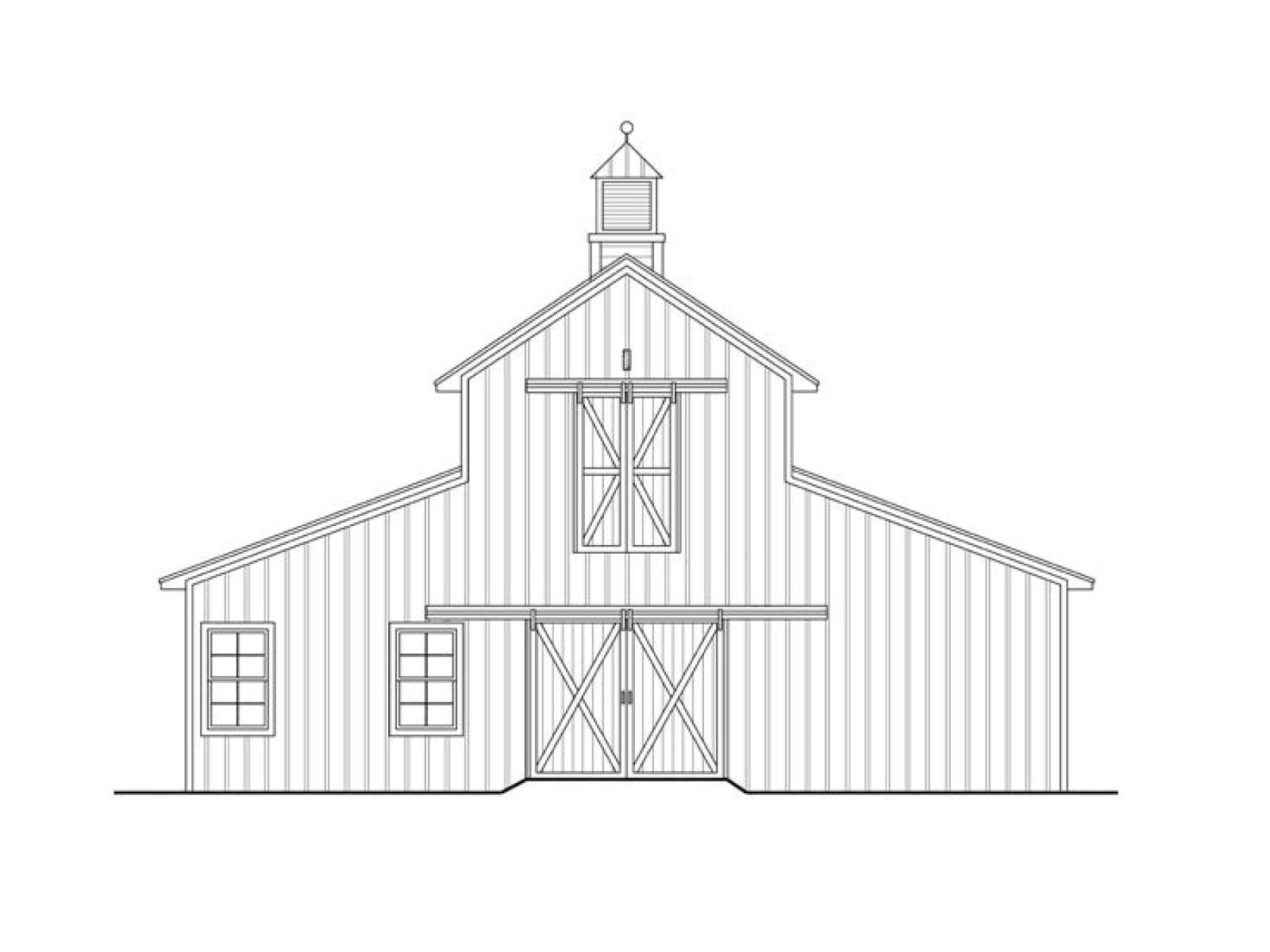

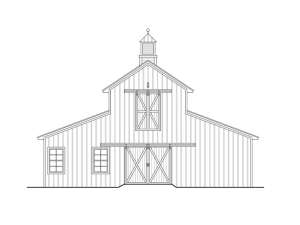

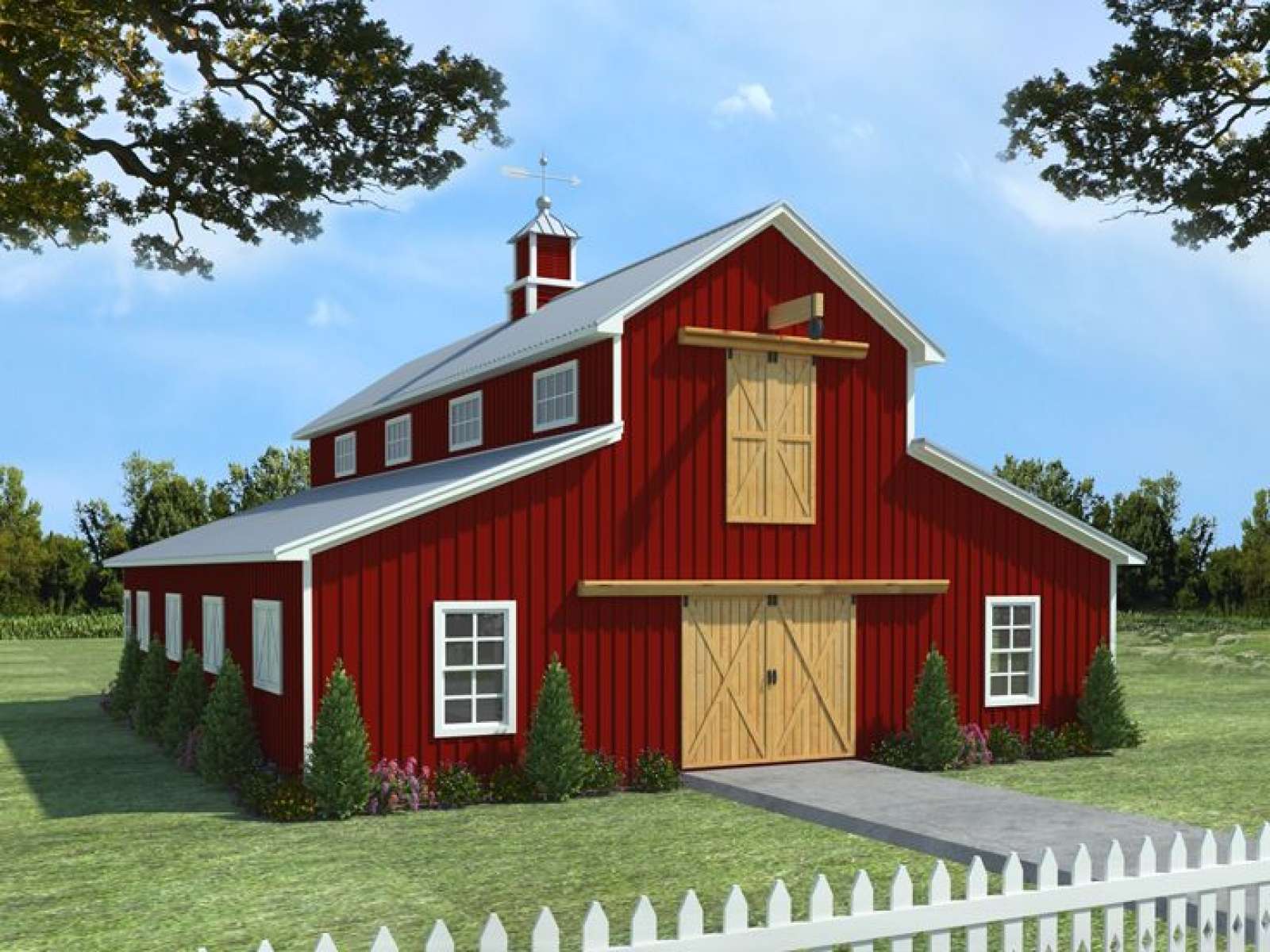

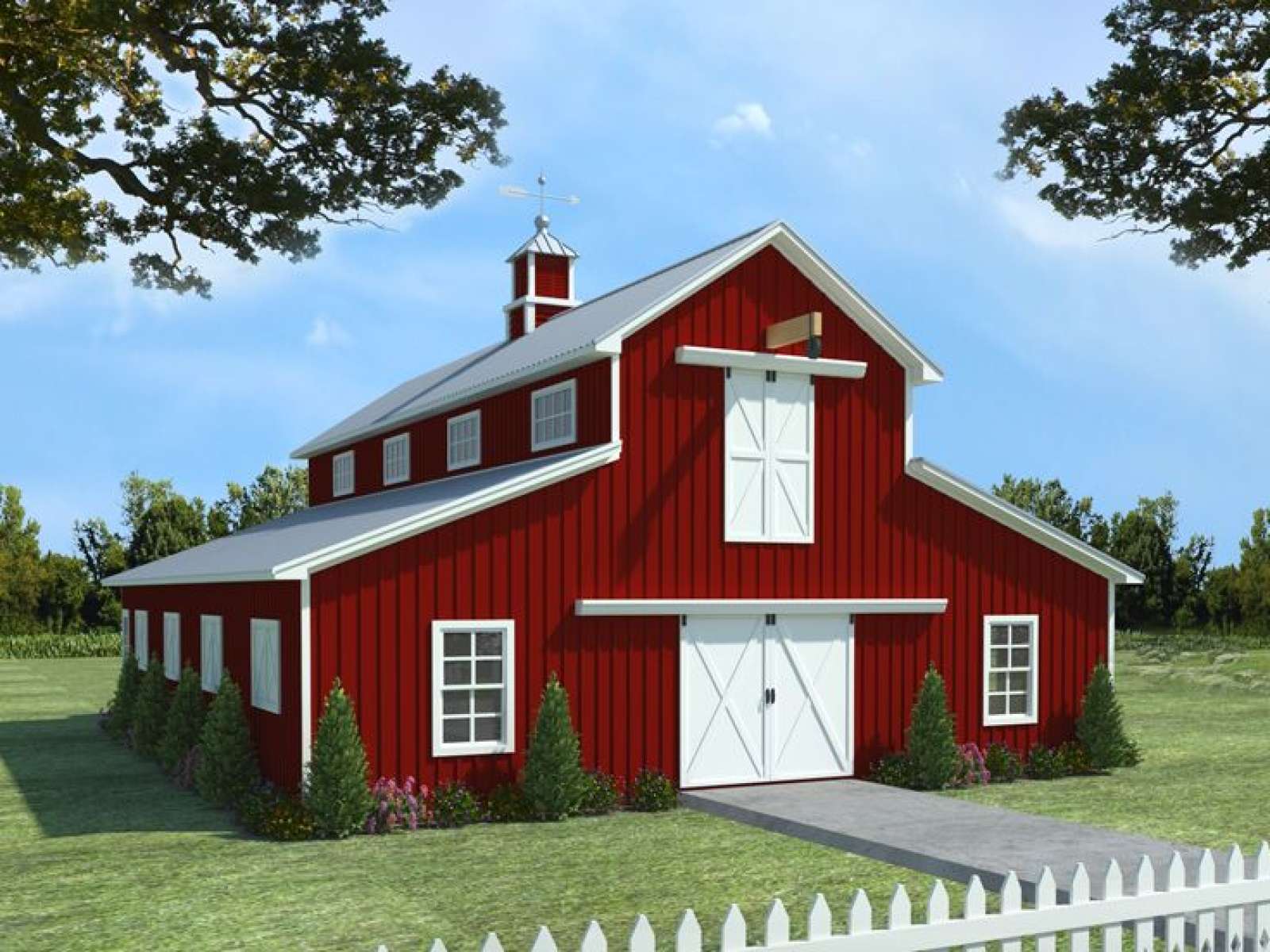

Horse barn plan includes living quarters for a farm or ranch hand
Design features two horse stalls, a tack and feed room, hay storage and drive-thru tractor storage

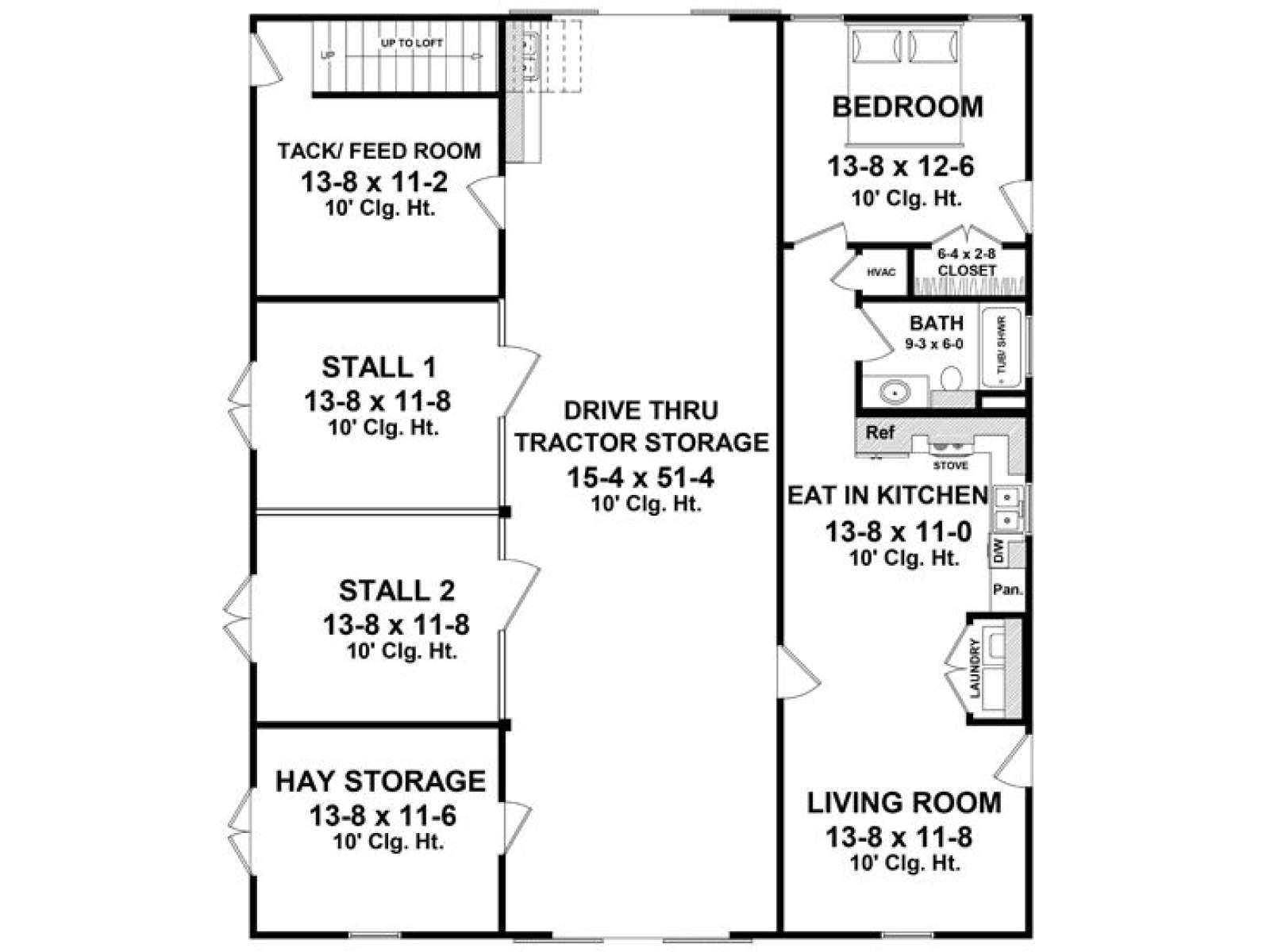

Finished living spaces include a one-bedroom, one-bath apartment for complete with kitchen, living space and laundry closet for farmhands

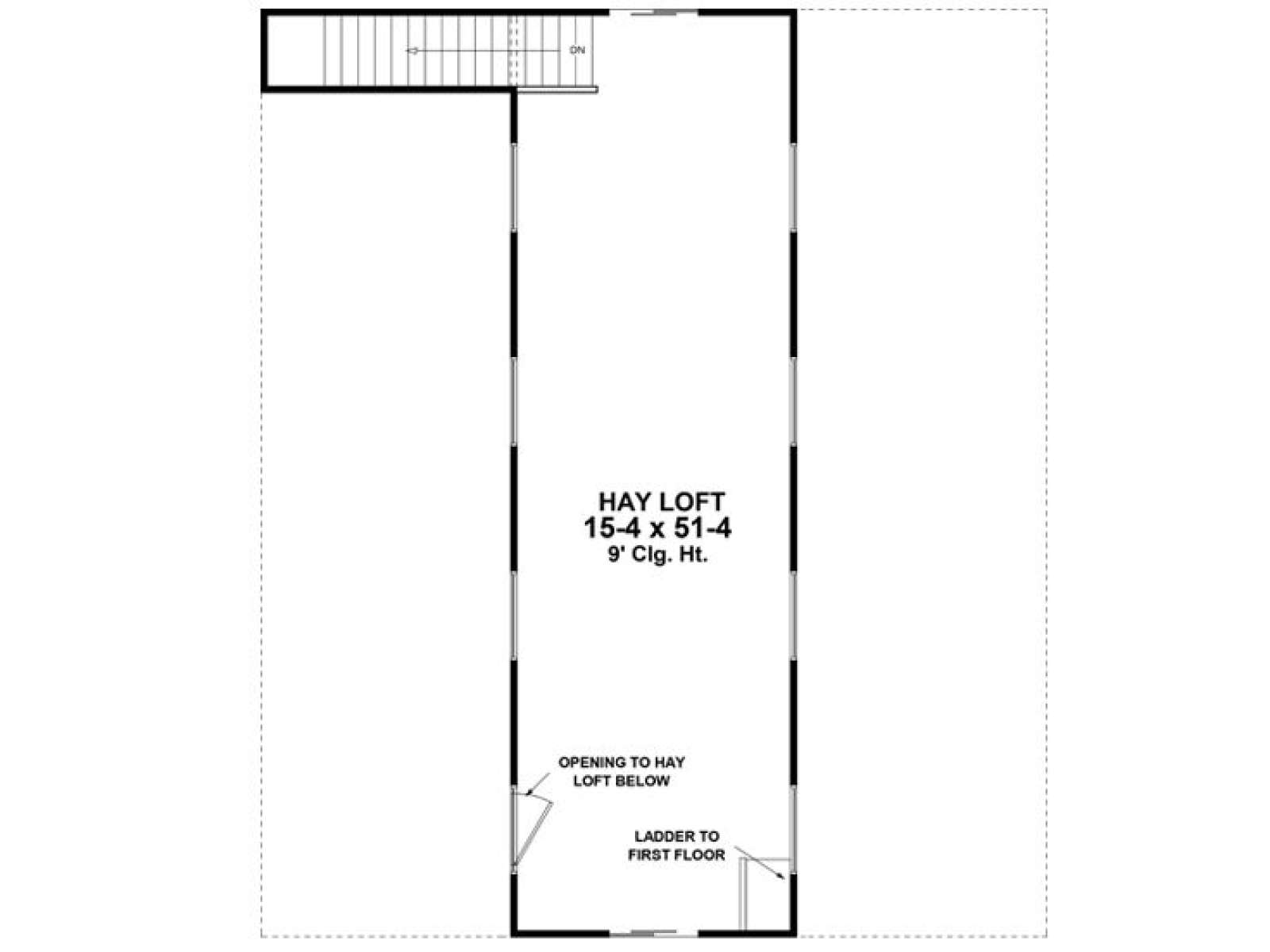

Second floor loft provides plenty of storage for hay or other necessities

Heated Square Feet
First Floor	741
Total	741
Unheated Square Feet
Loft	810
Outbuilding/Barn	1543
Bedrooms	1
Full Bathrooms	1
Width	44 ft. 0 in.
Depth	52 ft. 0 in.
Approximate Height	26 ft. 3 in.
Ceiling Height
First Floor	10 ft. 0 in.
Second Floor	9 ft. 0 in.
Roof Pitch	4.5/12 Main
Roof Pitch	8/12 Other
Roof Framing	Stick
Foundation Options	Slab
Exterior Wall Options	2x4

Interior Features

Laundry
Open floor plan

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$35	n/a	n/a	n/a
Priority 3 - 4 business days	$50	n/a	$70	n/a
Express 1 - 2 business days	$70	n/a	n/a	n/a
