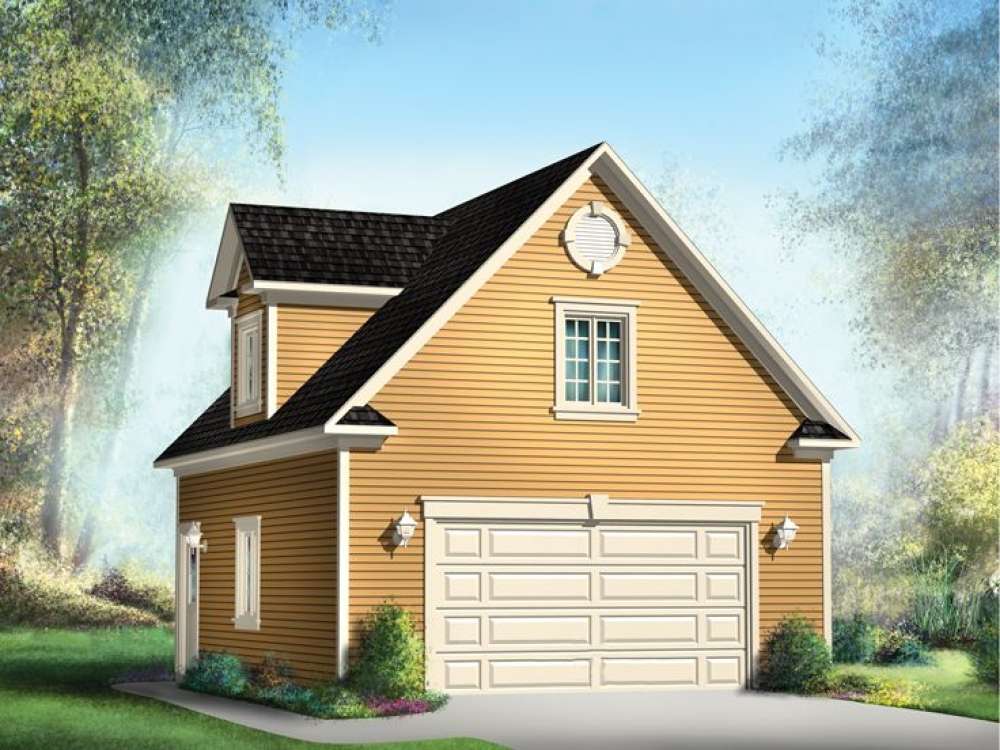

Garage Plan with Loft, 072G-0016
Garage Plan with Loft, 072G-0016
1st Floor Plan, 072G-0016
1st Floor Plan, 072G-0016
2nd Floor Plan, 072G-0016
2nd Floor Plan, 072G-0016

Plan 072G-0016

Click to enlarge. Views may vary slightly from working drawings. Refer to floor plan for actual layout.

Garage Plan with Loft, 072G-0016
1st Floor Plan, 072G-0016
2nd Floor Plan, 072G-0016
Add to Cart Add to Favorites More by this Designer
Add to Cart
Add to Favorites More by this Designer

Click large image to zoom.

2-Car Garage Plan with Loft

Plan Details

Heated Sq. Ft.
  Total  0 sq. ft.

Dimensions
  Width  22 ft. 0 in.
  Depth  26 ft. 0 in.

Ceiling Heights
  First Floor  8 ft. 0 in.

Roof Pitch
  12/12 Main

Roof Framing
  Truss

Exterior Wall
  2x6

Foundation
  Slab

Plan Features

There are no features for this plan.

Plan Description

Traditional-style two-car garage plan with loft
Multiple-sized floor plan provides an opportunity for extra deep bays to accommodate a boat
Charming dormer enhances curb appeal
Service entry and interior stairs to the loft lend convenience
Blueprints include 6 sizes: 22’x26’, 22’x28’, 22’x30’, 24’x26’, 24’x28’, 24’x30’
Pictured: Size 22’x26’
Material list included for garage size 22’x26’
Plans designed to be printed on 8 ½” x 11” pages


Order Plan


Complete construction drawing (excludes commercial plans) in electronic format for use by design professionals to make substantial changes to the blueprint. Comes with a copyright release granting legal permission to change the designer's original copyrighted house plan and reproduce it for construction. You must have CAD software to open a CAD file. Some CAD files can be emailed, while others must be shipped on a CD. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed or shipped.		 $350.00

Electronic file of the construction drawing delivered by email to the customer usually within 24-48 hours of purchasing (during regular business hours.) Includes a copyright release to print the blueprints needed for construction. Copies can be printed on 8 1/2" x 11" sheets right from your computer or take the file to a blueprint shop and print full sized project plans for construction. Saves time and shipping costs. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed. 		$140.00

Foundation

$0.00

Exterior Wall

$0.00

Other Options


One-time surcharge. All sets of project plans in your blueprint package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols and notes readable, rather than mirrored. 		$95.00

Processing and Shipping

Processing and shipping fees are calculated per plan, and not per total order. Rates are subject to change without notice.

Continental US Canada AK/HI *International
Regular - 8-12 business days n/a n/a n/a
Priority - 3-5 business days n/a n/a
Express - 1-2 business days n/a n/a n/a n/a

*Please Note: International orders may take up to 3 weeks for delivery.

.
